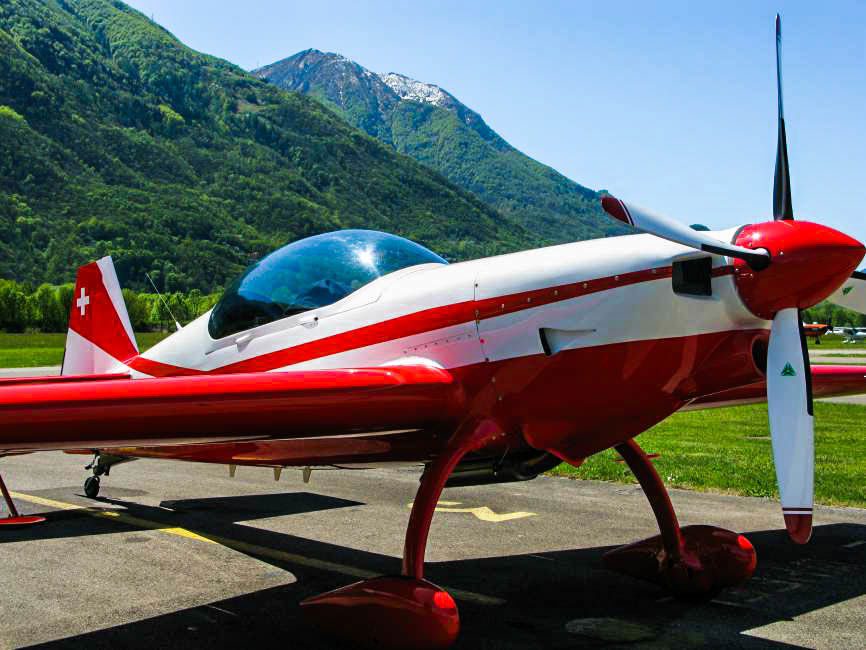

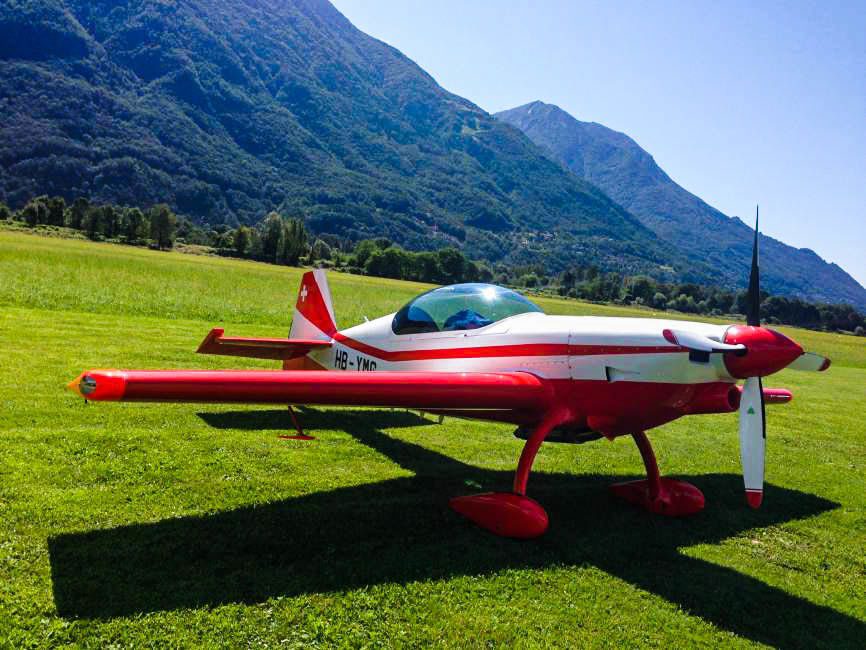

MSW Votec 322
Description
Price reduced massively for quick sale!
Swiss two seat experimental evolution of the One Design Aircraft.
Tubular Structure and Carbon Fiber Skins
One Piece Wing made one part of wood with layers of carbon.
Fully carbon vertical and horizontal stabilizer.
Fuel capacity – 110 liters in the Main (aerobatic) tank, 50 ltrs in each of the wing tanks.
Equipped with inverted oil system
In perfect condition
One owner since new
All log books available
Never used for Aerobatic except for the initial test flights. The owner never used the aircraft for aerobatic, just for traveling with his wife.
Airplane time state
Serial #04/007

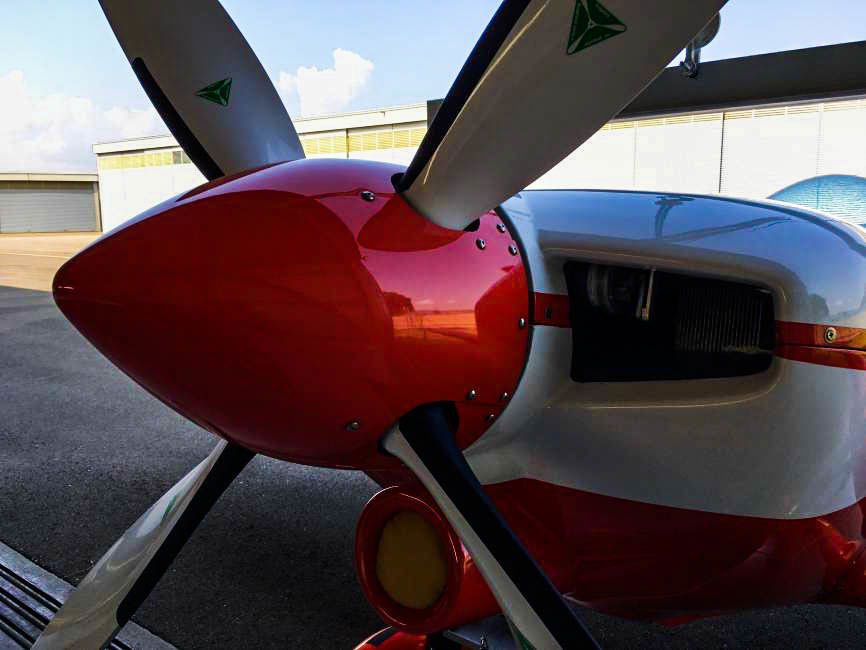

MT-Propeller MTV-14-B-C/C 195-3d Experimental
4 Bladed Wood/Composite Constant Speed Propeller with MT Propeller Governor Manufactured in 2005, Installed in August 2006. Overhauled by Manufacturer in Nobember 2014
Interior
Gray and Black
Exterior
Red and White, Swiss Airforce Team Color Scheme

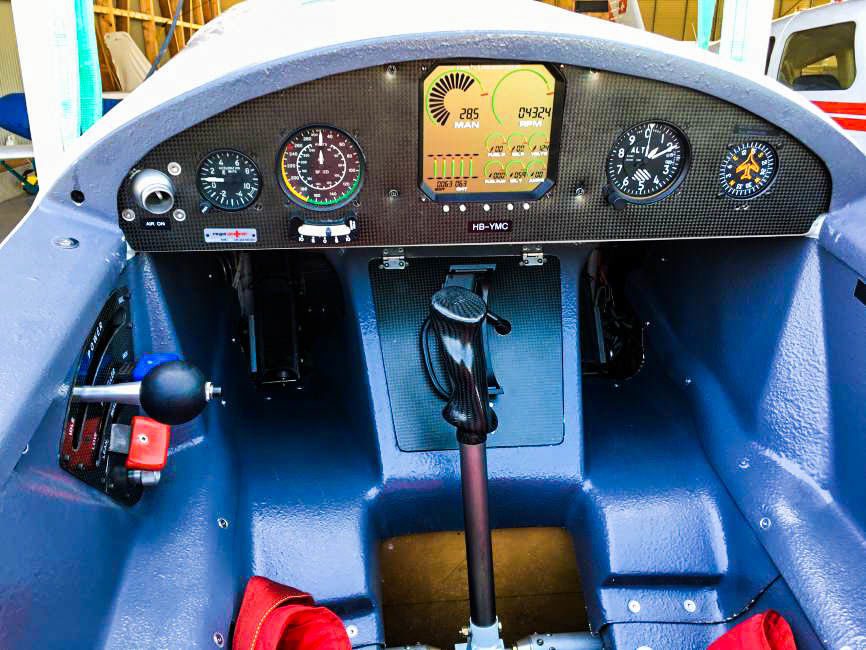

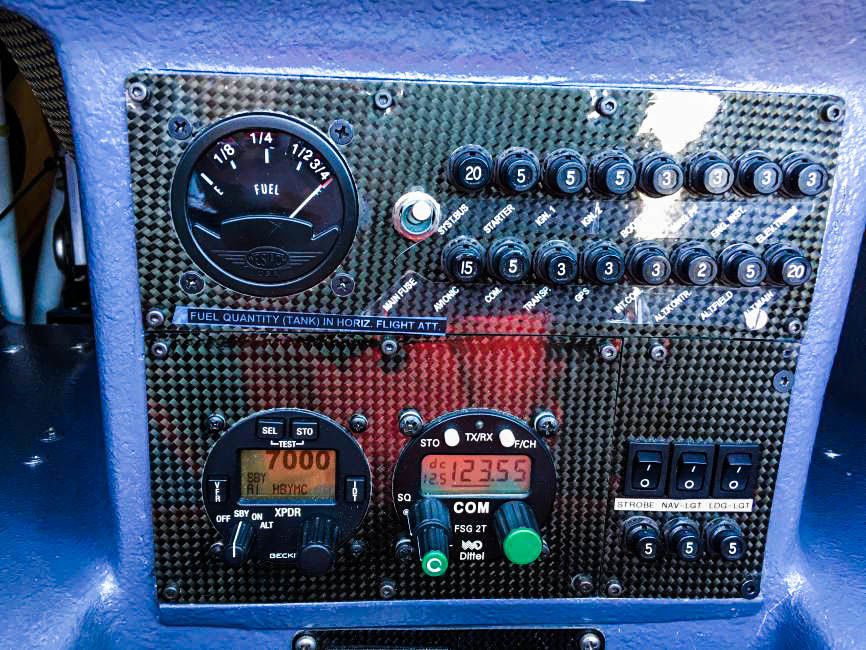

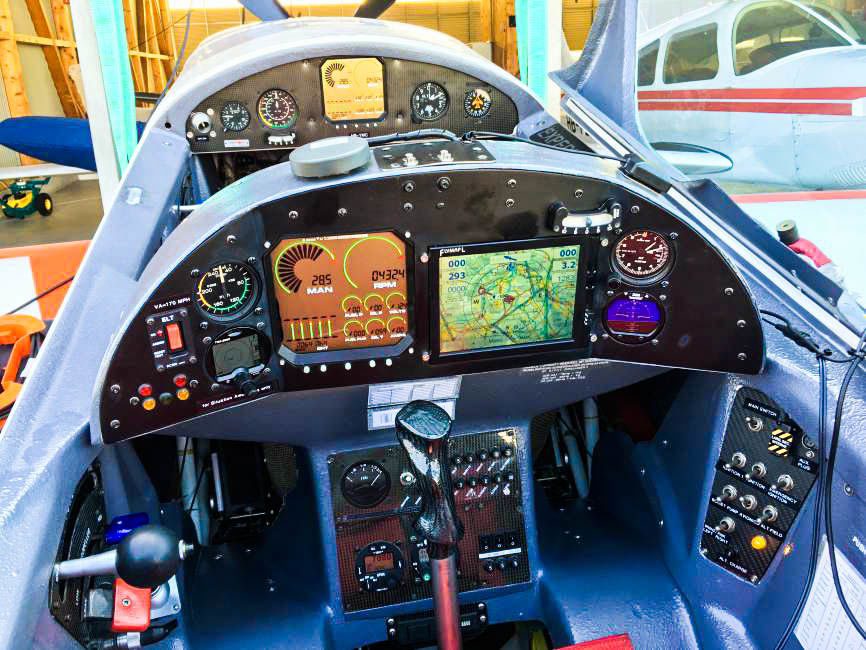

Avionics
AERO 796 GPS Map Display
Flarm Traffic Advisor
Mode S Transponder
406 MHz ELT
Electric Attitude Indicator
Electric Turn and Bank
Walter Dittel FSG2T 760 Channels Radio with Integrated Intercom

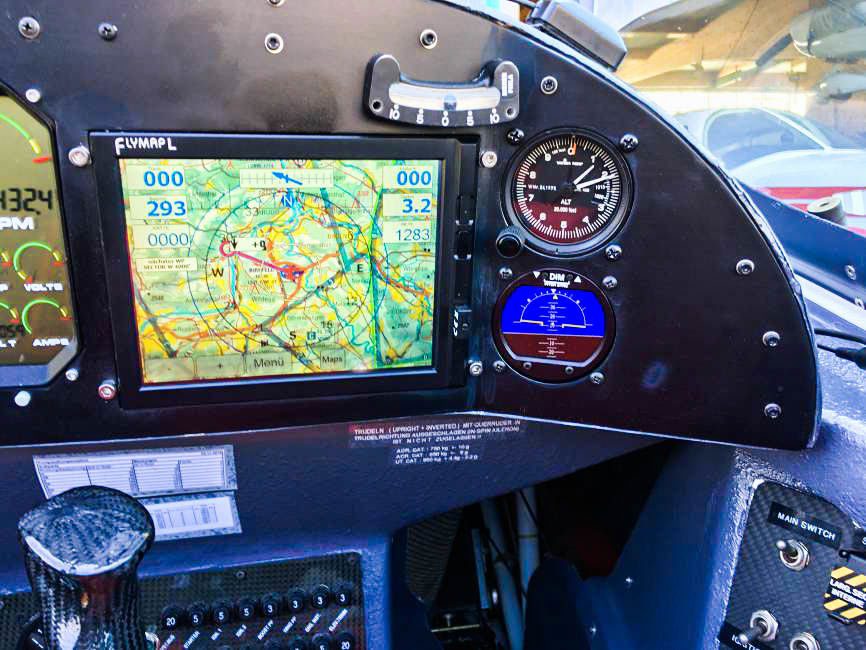

GPS Moving Map
Options
Electric Rudder Trim
Pitch Trim
LED Strobe Lights and NAV/Position Lights
Provision, Switch and Circuit Breaker, for installation of LED Landing Lights
Electric Fuel Pump
B&C – Specialty SD-20 Alternator
Triple AMP R-Flash-BB40 GEL Battery
Inverted flight oil system
Cabin heater
Spades on Ailerons for easier controls
Remarks
Annual inspection is overdue and installation of an 8.33 KHz VHF COM will be required for operation in Switzerland
Last Permit to Fly renewal performed by Swiss CAA on November 29, 2016 and expired on November 26, 2018
Cost of a new new permit to fly in Switzerland around CHF 5000.- including the new VHF transmitter, Transponer check, ELT battery, main aircraft battery and the 100 annual inspection.
The above work is not included in the sale price of the aircraft and will need to be performed by the purchaser
Possibility to buy shares of the aircraft and maintain the aircraft in the same hangar in Birrfeld, Switzerland
The purchaser should check his local legislation regarding aircraft registration and certification.
The Aircraft can be viewed and picked up in Birrfeld, Switzerland.
Specifications subject to verification by purchaser
Aircraft Gallery
